• Assist handle, front passenger (Also includes rear outboard passenger assist handle on Extended and Crew Cab Models.)
• Cigarette lighter, on instrument panel
• Coat hook, driver side (Also includes passenger side coat hook on Extended and Crew Cab Models.)
• Cupholders, front (Also includes rear cupholders on Extended and Crew Cab Models)
• Driver Information Center, monitors numerous different systems depending on vehicle equipment
• Lighting, dome lamp, reading, backlit instrument panel switches and door handle-activated illuminated entry
• Power outlets, auxiliary, covered, 2 dash-mounted, 12-volt
• Theft-deterrent system, PASSlock II
• Visors, padded, Shale-colored, driver and passenger side with cloth trim, extenders, pocket on driver side and vanity mirror on passenger side
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle-up reminder, turn signal on

• Alternator, 105 amps (Not available with (VYU) Snow Plow Prep Package)
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, ladder-type, hydroformed
• Pickup bed, Fleetside box
• Steering, power
• Suspension Package, Handling/Trailering, heavy-duty, includes 36mm piston monotube shocks
• Suspension, front, independent torsion bar, and stabilizer bar
• Suspension, rear, 3-stage springs
• Tire carrier, outside spare, winch-type mounted under frame at rear
• Tools, mechanical jack and wheel wrench, spare tire assist hook, floor-mounted in back of cab

• Air bags, frontal, driver and right front passenger (Regular and Extended Cab Models includes passenger side deactivation switch. - Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owner's Manual for more safety information.)
• Brakes, 4-wheel antilock, 4-wheel disc
• Daytime running lamps, includes automatic exterior lamp control

ENGINE, DURAMAX 6600 TURBO DIESEL V8

• (with Manual Transmissions 300 HP [223.8 kW] @ 3000 rpm
• 520 lb.-ft. [702.0 N-m] @ 1600 rpm) (with Automatic Transmissions 310 HP [231.2 kW] @ 3000 rpm
• 605 lb.-ft. [816.8 N-m] @ 1600 rpm) (Includes (TQ3) Battery
• heavy-duty dual
• 770 cold-cranking amps
• (K05) Engine block heater and (K47) Air cleaner
• high capacity)

• ENGINE DURAMAX 6600 TURBO DIESEL V8 (with Manual Transmissions 300 HP [223.8 kW] @ 3000 rpm 520 lb.-ft. [702.0 N-m] @ 1600 rpm) (with Automatic Transmissions 310 HP [231.2 kW] @ 3000 rpm 605 lb.-ft. [816.8 N-m] @ 1600 rpm) (Includes (TQ3) Battery heavy-duty dual 770 cold-cranking amps (K05) Engine block heater and (K47) Air cleaner high capacity)
• Four Wheel Drive
• Tow Hooks
• Tires - Front All-Season
• Tires - Rear All-Season
• Steel Wheels
• Power Steering
• Intermittent Wipers
• Pass-Through Rear Seat

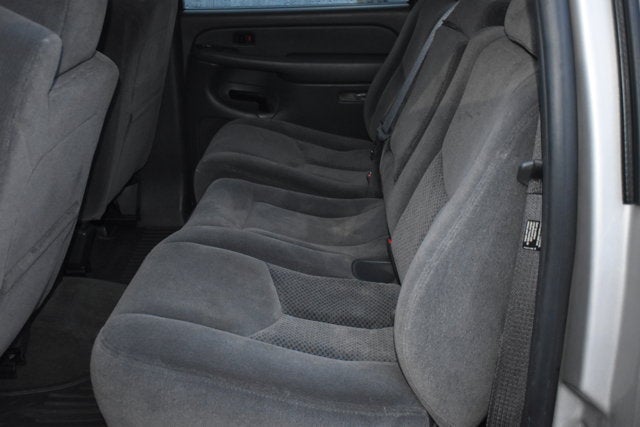

• Rear Bench Seat
• Adjustable Steering Wheel
• Immobilizer
• Multi-Zone A/C
• A/C
• AM/FM Stereo
• Passenger Vanity Mirror
• Driver Air Bag
• Passenger Air Bag
• Power Door Locks

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 770
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 770
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): 16.2
• Total Cooling System Capacity (qts): 16.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 8550
• Curb Weight - Front (lbs): 3471
• Curb Weight - Rear (lbs): 2899
• Gross Vehicle Weight Rating Cap (lbs): 11400
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1365
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16100
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9100
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3500
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2275
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 3-Stage Spring
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 8600
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 36
• Shock Absorber Diameter - Rear (mm): 36
• Stabilizer Bar Diameter - Front (in): 1.25
• Brakes
• Brake Type: Pwr
• Brake ABS System: Four-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 12.8 x 1.2
• Tires
• Front Tire Order Code: XEC
• Rear Tire Order Code: XEC
• Spare Tire Order Code: XEC
• Front Tire Size: LT215/85R16
• Rear Tire Size: LT215/85R16
• Spare Tire Size: LT215/85R16
• Front Tire Capacity (lbs): 2430
• Rear Tire Capacity (lbs): 2150
• Spare Tire Capacity (lbs): 2430
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 24.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 55.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 167.0
• Length, Overall w/o rear bumper (in): 256.2
• Width, Max w/o mirrors (in): 96.1
• Height, Overall (in): 77.3
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 47.3
• Front Bumper to Back of Cab (in): 148.1
• Cab to Axle (in): 55.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.4
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.6
• Ground Clearance, Rear (in): 13.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.6
• Cargo Box Width @ Top, Rear (in): 61.9
• Cargo Box Width @ Floor (in): 64.8
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.5
• Tailgate Width (in): 61.9
• Cargo Volume (ft³): 73.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 61.4
• Second Head Room (in): 39.9
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 65.1
• Second Hip Room (in): 62.9
• Summary

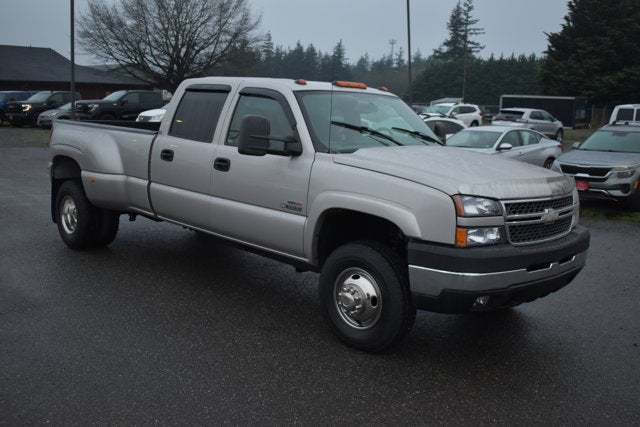

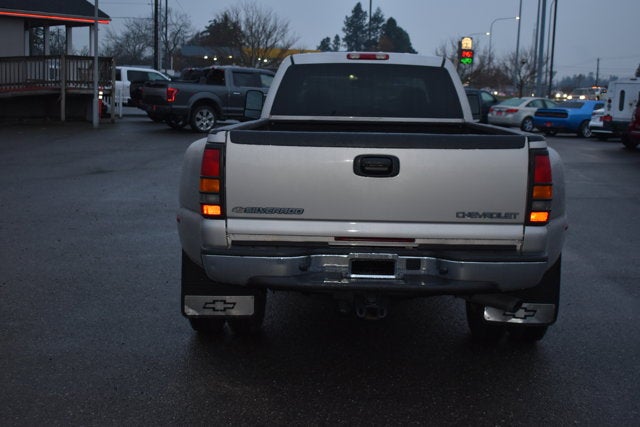

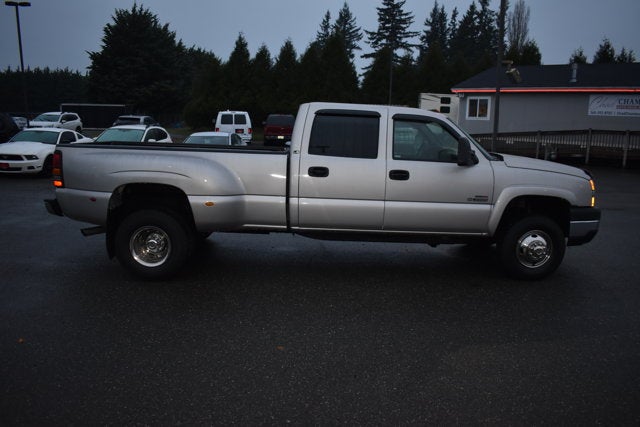

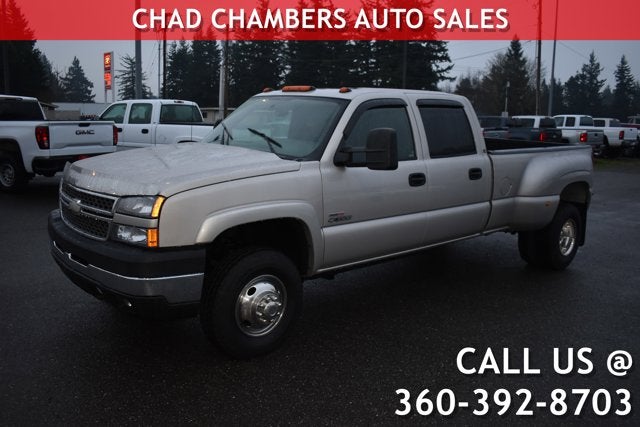

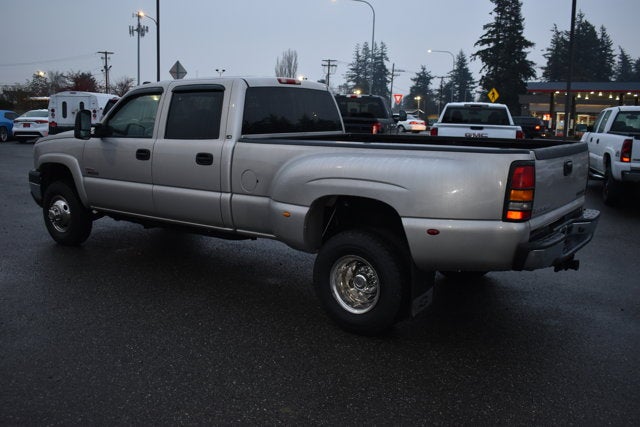

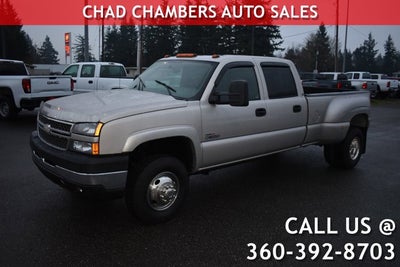

• Vehicle Name: Chevrolet Silverado 3500
• Body Style: Crew Cab 8' Fleetside
• Body Code: E63
