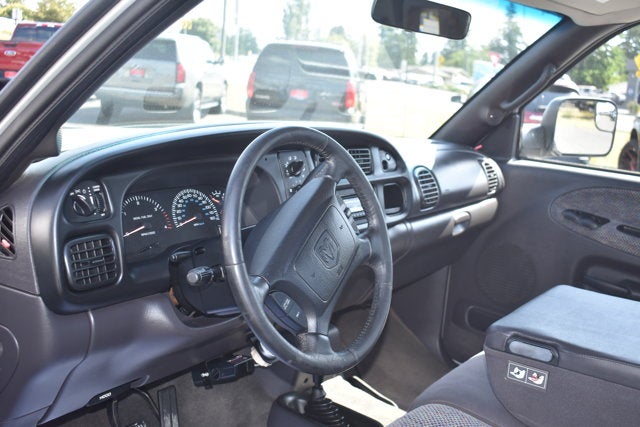

• 2-spoke steering wheel
• Black vinyl floor covering
• Cab-back panel stowage
• Cargo lamp
• Cigar lighter/pwr outlet
• Color-keyed full length door trim panels w/armrests
• Dash insulation liner
• Day/night rearview mirror
• Dual-opening retractable cup holder
• Electronic AM/FM stereo radio w/cassette

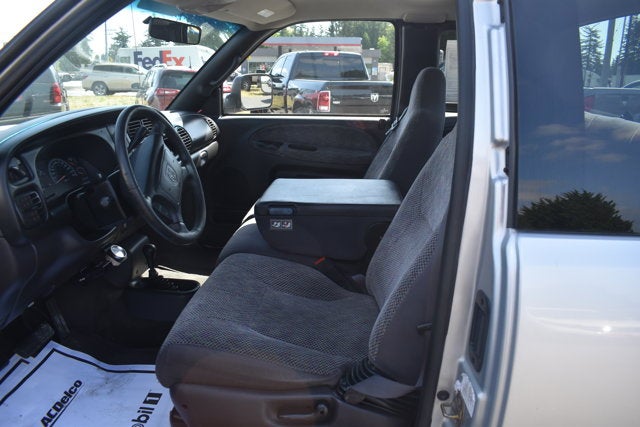

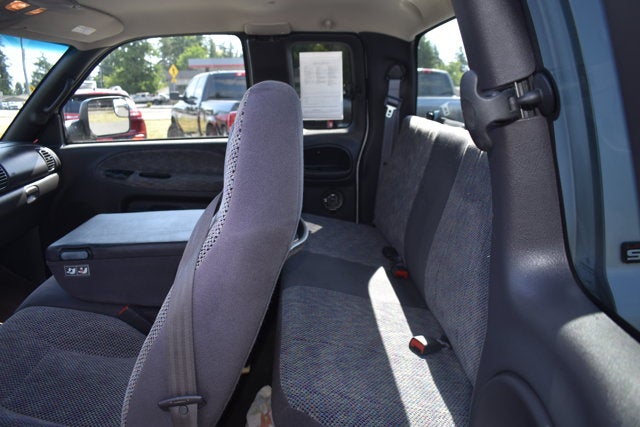

• HD vinyl 40/20/40 double split-back bench seats w/rear flip-type bench seat
• Hood release in cab
• Instrument cluster-inc: 120 MPH speedometer, tachometer
• Passenger assist handle

• (4) bright trim rings/hub center
• (5) 16" x 7.5" steel wheels
• 117-amp alternator
• 3.54 axle ratio
• 600-amp maintenance-free battery
• 8800# GVWR (5200 front/6200 rear), springs (5200 front/6200 rear), axles (5200 front/6200 rear)
• Conventional spare tire w/winch type carrier
• Four wheel drive
• Front stabilizer bar
• HD front/rear shock absorbers
• LT245/75R16E all-season SBR BSW tires
• NV241 2-speed transfer case w/shift-on-the-fly auto hubs
• Pwr 4-wheel anti-lock disc brakes
• Solid front axle w/link-coil suspension
• Solid rear axle w/longitudinal leaf springs
• Variable assist pwr steering

• Driver/front passenger "Next Generation" airbags w/passenger on/off switch
• Dual note electric horn
• Front shoulder belt height adjusters
• Rear-wheel anti-lock brakes
• Side-guard door beams

5.9L (359) 24-VALVE I6 CUMMINS DIESEL ENGINE

• HD service group
• diesel message center (w/low fuel/low oil/water in fuel/wait to start/brakes/anti-lock brakes warning lights)
• "Cummins Diesel" nameplates
• diesel sound insulation on inner dash/cowl/floor pads
• engine block heater

• Four Wheel Drive
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Steel Wheels
• Power Steering
• 4-Wheel Disc Brakes
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Third Passenger Door
• Fourth Passenger Door
• Vinyl Seats
• Split Bench Seat
• AM/FM Stereo
• Cassette
• Power Outlet
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 117
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 24.0
• Total Cooling System Capacity (qts): 20.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4500
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3070
• Curb Weight - Rear (lbs): 2140
• Gross Vehicle Weight Rating Cap (lbs): 8800
• Gross Combined Wt Rating (lbs): 20,000
• Gross Combined Wt Rating (lbs): 14,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 900
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Rear (lbs): 6500
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Rear (lbs): 7500
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): 35.1
• Shock Absorber Diameter - Rear (mm): 35.1
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.5 x 1.50
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: TYD
• Rear Tire Order Code: TYD
• Spare Tire Order Code: TYD
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 3040
• Rear Tire Capacity (lbs): 3040
• Spare Tire Capacity (lbs): 3040
• Revolutions/Mile @ 45 mph - Front: 683
• Revolutions/Mile @ 45 mph - Rear: 683
• Revolutions/Mile @ 45 mph - Spare: 683
• Wheels
• Front Wheel Size (in): 16 x 7.5
• Rear Wheel Size (in): 16 x 7.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34.0
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 138.7
• Length, Overall w/o rear bumper (in): 220.1
• Width, Max w/o mirrors (in): 79.3
• Height, Overall (in): 77.1
• Overhang, Front (in): 38.0
• Overhang, Rear w/o bumper (in): 43.5
• Front Bumper to Back of Cab (in): 136.9
• Cab to Axle (in): 39.7
• Cab to End of Frame (in): 79.7
• Ground to Top of Load Floor (in): 37.3
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 15.9
• Ground Clearance, Rear (in): 8.2
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 77.5
• Cargo Box Width @ Top, Rear (in): 60.4
• Cargo Box Width @ Floor (in): 64.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.4
• Tailgate Width (in): 64.3
• Cargo Volume (ft³): 55.5
• Ext'd Cab Cargo Volume (ft³): 48.5
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 66.5
• Front Hip Room (in): 63.6
• Second Head Room (in): 39.4
• Second Leg Room (in): 33.2
• Second Shoulder Room (in): 67.1
• Second Hip Room (in): 65.1
• Summary

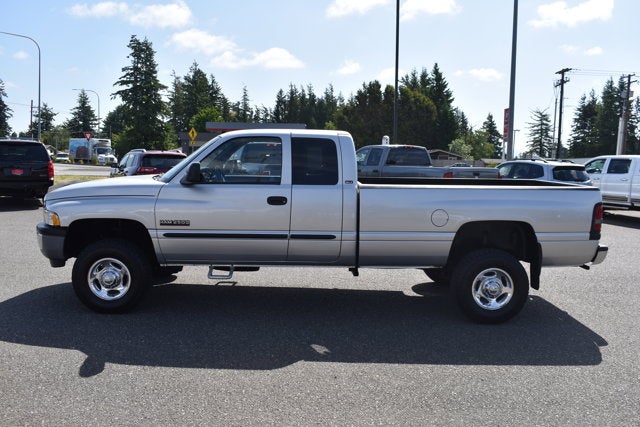

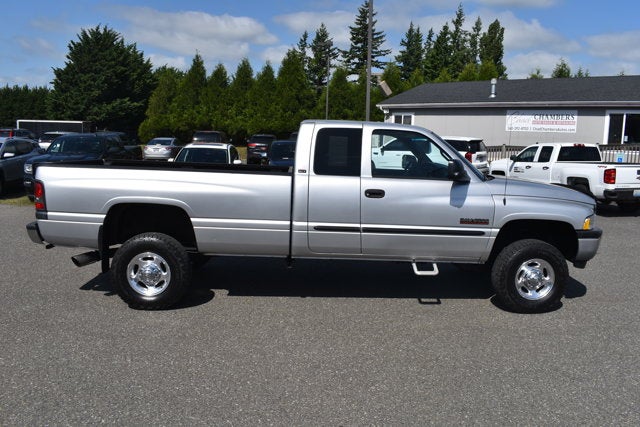

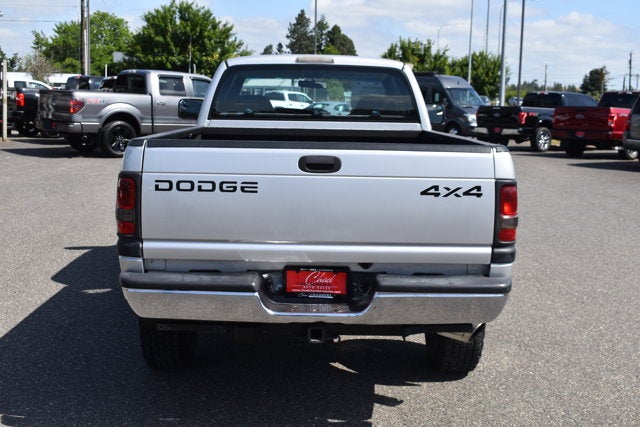

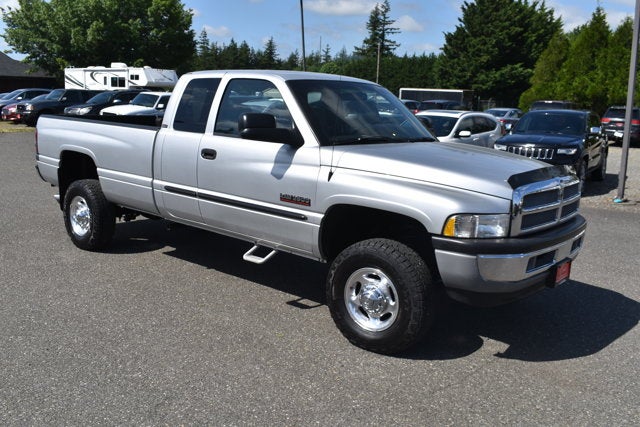

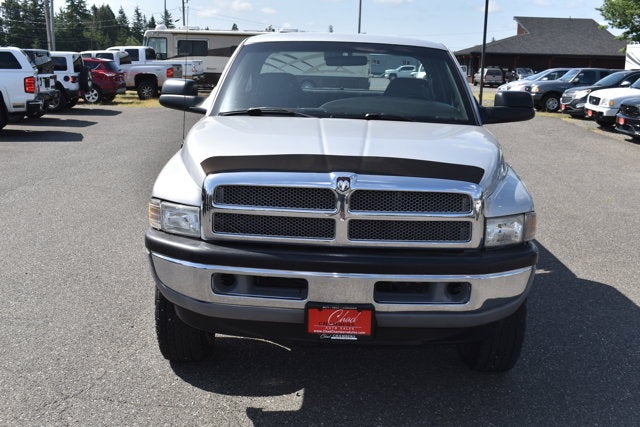

• Vehicle Name: Dodge Ram 2500
• Body Style: Quad Cab 6.5'
• Body Code: 139" WB
